How to Check All Electronic Components: Ultimate Step-by-Step Guide

Are you struggling to figure out if your electronic components are working properly? Knowing how to check all electronic components can save you time, money, and frustration.

Whether you’re fixing a device or building a new project, understanding the basics will give you confidence and control. You’ll discover simple, step-by-step methods that anyone can use—no advanced tools or skills needed. Ready to become your own electronics expert?

Keep reading, and you’ll learn exactly what to do to test your components quickly and accurately.

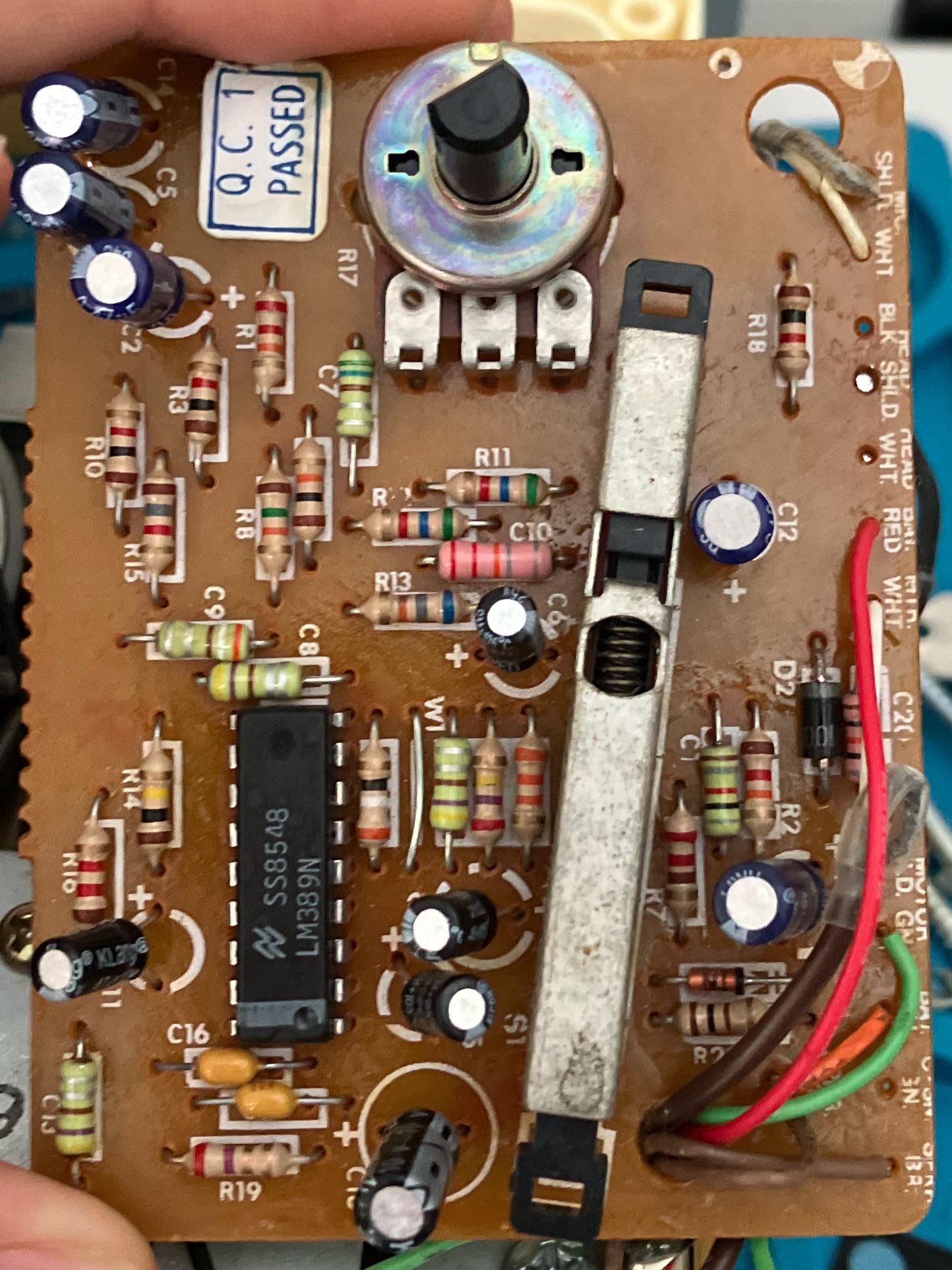

Credit: www.youtube.com

Essential Tools For Testing

Testing electronic components requires the right tools for accurate results. Without them, you risk damaging parts or missing faults. Essential tools help measure voltage, current, resistance, and other key parameters. They provide quick checks and detailed analysis for different components.

Using the correct tools saves time and effort. It ensures safety during testing and helps identify faulty parts fast. Here are the must-have tools for checking electronic components effectively.

Multimeter

A multimeter measures voltage, current, and resistance in circuits. It checks if components like resistors and capacitors work properly. Digital multimeters are easy to read and more accurate than analog ones. Many models also test continuity and diode functionality.

Oscilloscope

An oscilloscope shows voltage changes over time on a screen. It helps analyze signals in complex circuits. You can see waveform shapes, frequencies, and glitches. This tool is essential for testing oscillators, amplifiers, and digital signals.

Component Tester

Component testers identify and measure individual parts quickly. They test transistors, diodes, capacitors, and more. These devices often display component type and key values. They are useful for sorting unknown or damaged components.

Soldering Iron

A soldering iron helps remove or attach components on circuit boards. It is needed when testing parts that require disconnection. Precise temperature control prevents overheating and damage. A clean tip ensures good solder joints for reliable tests.

Power Supply

A regulated power supply provides stable voltage and current to circuits. It allows safe powering of components during testing. Adjustable settings let you match component requirements. Overcurrent protection prevents damage from short circuits.

Visual Inspection Techniques

Visual inspection is the first step to check electronic components. It helps identify obvious problems fast. This technique uses simple observation with the eyes or magnifying tools. It catches physical damage, dirt, or incorrect parts. Visual checks save time and prevent further damage.

Good lighting and a clean workspace improve the inspection quality. Use a magnifying glass or microscope for small parts. Look closely at every component’s surface and connections. Note any signs of wear or unusual marks.

Checking For Physical Damage

Look for cracks, burns, or broken parts on the components. Damaged parts may not work or cause short circuits. Inspect solder joints and leads for breaks or corrosion. Bent pins or loose wires affect the circuit’s performance. Replace or repair damaged elements immediately.

Identifying Burn Marks And Discoloration

Burn marks show overheating or electrical faults. Discolored components often mean heat damage or aging. Check resistors, capacitors, and chips for color changes. Dark spots or melted plastic indicate serious issues. Such parts require immediate attention and testing.

Examining Component Labels And Markings

Verify the component’s type and rating by reading labels. Incorrect parts cause circuit failure or inefficiency. Check printed codes, values, and polarity marks carefully. Confirm they match the circuit design and schematic. Missing or faded labels make identification hard.

Inspecting For Dirt And Corrosion

Dirt, dust, or corrosion can cause poor connections. Look around contacts, terminals, and circuit boards. Clean the components gently using a soft brush or cloth. Avoid using water or harsh chemicals. Corrosion often appears as white, green, or rust-colored spots.

Using Magnification Tools

Small components need magnification for detailed inspection. Use a jeweler’s loupe, magnifying glass, or microscope. Zoom in on solder joints and tiny parts. This helps spot cracks, cold solder joints, or foreign debris. Regular use of magnification increases inspection accuracy.

Testing Resistors

Testing resistors is a crucial step in troubleshooting electronic circuits. Resistors control current flow, so a faulty resistor can cause unexpected behavior or damage. Knowing how to test them yourself saves time and avoids unnecessary replacements.

Using A Multimeter

A multimeter is your best tool for testing resistors. Set it to the resistance (ohm) mode before measuring.

First, ensure the resistor is disconnected from the circuit to avoid false readings. Touch the multimeter probes to each lead of the resistor. The display shows the resistance value, which you can compare to the resistor’s color code or labeled value.

If the reading matches within the tolerance range, the resistor is good. A reading close to zero or infinity indicates a short or open resistor, respectively. Have you ever found a resistor that read zero? It usually means it’s completely damaged and needs replacement.

Identifying Faulty Resistors

Faulty resistors often show visible signs like burn marks or discoloration. But sometimes, they look fine yet fail the resistance test.

Look for these common signs:

• Resistance reading is significantly different from the rated value.
• Resistance fluctuates or is unstable when measuring.
• Physical damage such as cracks or charring.

Even if a resistor passes a quick test, check it under different conditions if your circuit still malfunctions. Sometimes heat or load changes can cause intermittent failures. Have you ever replaced a resistor that seemed fine at first but fixed your circuit afterward? That’s why thorough testing pays off.

Credit: octopart.com

Capacitor Testing Methods

Capacitors are essential in almost every electronic circuit, but they can fail over time or due to stress. Testing them accurately saves you from unnecessary replacements and troubleshooting headaches. You’ll find that knowing a couple of straightforward testing methods can give you confidence in diagnosing capacitor health.

Testing With A Multimeter

A multimeter is a handy tool you probably already own. To test a capacitor with it, first, discharge the capacitor completely to avoid damage or inaccurate readings. Then set your multimeter to the resistance (ohms) mode.

Connect the multimeter leads to the capacitor terminals and watch the reading. A good capacitor will show a low resistance initially, which gradually rises toward infinity as the capacitor charges through the meter. If the reading stays at zero or a fixed value, the capacitor might be shorted or open.

Keep in mind, this method works best for electrolytic capacitors. For small-value capacitors, it may not be very reliable because the resistance change is too fast to notice. Have you ever been surprised by a capacitor that looked fine but failed this simple test?

Using A Capacitor Tester

A dedicated capacitor tester can measure capacitance, Equivalent Series Resistance (ESR), and leakage current, offering a clearer picture of the capacitor’s condition. These testers are affordable and designed specifically for capacitors, making your job easier and more accurate.

Simply connect the capacitor to the tester following the device instructions. You’ll get a direct readout of capacitance value and ESR, helping you decide if the capacitor is within its specified range. This method removes much of the guesswork and is especially useful for professionals or hobbyists who test capacitors frequently.

If you’re unsure about interpreting the results, compare the readings with the capacitor’s labeled values or datasheet. Have you checked if your capacitor tester offers ESR measurement? It’s a game-changer for diagnosing subtle failures.

Inductor Testing Procedures

Inductors play a crucial role in many electronic circuits, and testing them ensures your devices run smoothly. Knowing how to check an inductor can save you time and prevent costly replacements. Let’s dive into practical ways to test these components effectively.

Measuring Inductance

Measuring inductance accurately requires an LCR meter or a specialized inductance meter. Connect the inductor leads to the meter probes and read the displayed value. Compare this value to the inductor’s rated inductance printed on its body or datasheet.

If the measured inductance is significantly lower or higher than expected, the inductor might be damaged or degraded. You can also test inductors in-circuit, but be aware that other components may affect the reading. For the most reliable results, test inductors outside the circuit.

Detecting Short Circuits

Short circuits inside an inductor usually mean the wire windings have touched or broken, causing malfunction. Use a digital multimeter set to continuity mode to check for shorts.

• Place the probes on the two terminals of the inductor.
• If the multimeter beeps or shows near zero resistance, the coil winding is intact.
• If it shows zero resistance or close to it, suspect a short circuit or a direct short.

In my experience, a seemingly functional inductor with a short will cause unexpected circuit failures. Testing this way helps you find hidden faults quickly. Have you ever found a perfectly looking inductor that failed this test?

Diode And Led Testing

Diodes and LEDs are fundamental components in many electronic circuits. Testing them correctly ensures your projects run smoothly without unexpected failures. Understanding how to check their functionality can save you time and frustration when troubleshooting.

Checking Forward And Reverse Bias

A diode allows current to flow in one direction—this is called forward bias. To test this, you need a multimeter set to the diode testing mode.

Connect the positive lead of the multimeter to the diode’s anode and the negative lead to the cathode. If the diode is good, you will see a voltage drop reading, typically between 0.6V and 0.7V for silicon diodes.

Reverse the leads to check reverse bias. The multimeter should show no conduction or an open circuit. If the diode passes current in both directions, it’s faulty and needs replacement.

Identifying Burnt-out Leds

LEDs can fail silently or appear burnt out. Visual inspection is your first step—look for dark spots or discoloration on the LED’s surface.

Next, test the LED using your multimeter’s diode setting. Connect the positive lead to the LED’s anode and the negative to the cathode.

• If the LED lights up dimly or shows a voltage drop, it’s likely still functional.
• No light or no voltage reading typically means the LED is burnt out.

Ever been frustrated by an LED that doesn’t light despite a working circuit? Testing it directly can confirm if the LED itself is the issue, saving hours of guesswork.

Transistor Examination

Transistors are the building blocks of many electronic circuits. Checking them properly ensures your device performs well and prevents damage to other components. Understanding how to examine transistors can save you time and frustration during troubleshooting.

Testing Npn And Pnp Transistors

NPN and PNP transistors work differently but share a similar testing approach. You can use a simple multimeter to check if they’re functioning correctly.

Set your multimeter to the diode test mode. Place the positive lead on the transistor’s base and the negative lead on the emitter for an NPN transistor. You should see a reading indicating a forward voltage drop, usually around 0.6 to 0.7 volts.

For a PNP transistor, reverse the leads: positive on the emitter and negative on the base. The reading should also show a similar voltage drop.

If you get no reading or a very high reading, the transistor may be faulty or open. A zero or very low reading could indicate a shorted transistor.

Analyzing Gain And Leakage

Gain (hFE) tells you how well a transistor amplifies current. Most multimeters have a transistor test socket to measure this directly. Check the transistor’s datasheet for the expected gain range and compare it with your measurement.

Leakage current is the unwanted flow between the collector and emitter when the transistor is off. To test leakage, measure resistance between these terminals with the transistor off. A very low resistance suggests leakage, which means the transistor might be damaged.

Have you ever replaced a transistor only to find the circuit still doesn’t work? Sometimes, gain and leakage tests reveal subtle issues you wouldn’t catch by basic testing alone.

Ic And Microcontroller Testing

Testing integrated circuits (ICs) and microcontrollers ensures they function correctly in electronic devices. Faulty ICs can cause device failures or erratic behavior. Proper testing helps identify defects early and saves time during troubleshooting. Various techniques exist to check these components efficiently.

Functional Testing Techniques

Functional testing verifies if an IC or microcontroller performs its intended tasks. This testing involves applying power and input signals, then measuring output responses. Use a breadboard or test circuit to connect the component. Check for correct voltage levels, timing, and signal patterns.

Observe the component’s behavior under different input conditions. Compare the outputs with expected results from datasheets. Testing pins for continuity and shorts also helps detect physical damage. Use an oscilloscope or logic analyzer for detailed signal inspection.

Using An Ic Tester

An IC tester is a specialized tool designed to quickly check ICs. It automatically applies test signals and reads outputs. The tester compares results against known good patterns stored in its memory.

• Insert the IC carefully into the tester’s socket.
• Select the correct IC type from the tester’s menu.
• Run the test and wait for the results.
• The tester indicates pass or fail status.

IC testers save time and reduce errors during testing. They suit technicians and hobbyists who test many components regularly. Some testers also support microcontrollers, checking their pins and memory.

Relay And Switch Testing

Testing relays and switches is a crucial part of checking electronic components. These parts control the flow of electricity, so if they fail, your device won’t work properly. Knowing how to test them can save you time and money by pinpointing the exact issue.

Checking Coil Resistance

The coil in a relay acts like an electromagnet. To test it, you need a multimeter set to measure resistance (ohms). A healthy coil usually shows a specific resistance value; if it reads open or short circuit, the coil is faulty.

Place the multimeter probes on the coil terminals. Watch for a steady reading; a fluctuating or zero reading means trouble. Keep in mind, different relays have different coil resistance values, so check the datasheet for exact numbers.

Ensuring Proper Contact Operation

Relay contacts and switches must open and close correctly to control current. You can test this by checking continuity with a multimeter. When the relay is activated, the contacts should close and show low resistance; when off, the circuit should be open.

For switches, press or toggle them while measuring continuity. If the reading doesn’t change as expected, the switch contacts might be dirty or worn out. Have you ever struggled with a device that wouldn’t turn on because of a faulty switch? Testing like this helps avoid that frustration.

Troubleshooting Common Issues

Troubleshooting common issues with electronic components can save you time and money. It starts with knowing what signs to look for and how to address them effectively. Let’s dig into two frequent problems: overheating components and corroded connections.

Identifying Overheating Components

Overheating is a silent enemy that can damage your electronic parts quickly. You might notice a burnt smell, discoloration, or components that feel unusually hot to the touch. Use a non-contact infrared thermometer or thermal camera to pinpoint hot spots without risking a burn.

Check if the component’s temperature exceeds its rated limit. For example, a resistor that should stay below 70°C but reads 90°C likely has an issue. Overheating could result from excessive current, poor ventilation, or a failing part.

Ask yourself: is the heat consistent or sporadic? Constant heat might indicate a design flaw, while spikes could be due to intermittent shorts. Fixing this may mean replacing the component or improving cooling with fans or heat sinks.

Dealing With Corroded Connections

Corrosion disrupts the flow of electricity and leads to unreliable circuits. You’ll often see greenish or white powdery deposits on solder joints, terminals, or connectors. These deposits increase resistance and can cause components to fail.

Start by cleaning the affected areas with isopropyl alcohol and a soft brush. If corrosion is severe, you might need to re-solder or replace the connector entirely. Always inspect the PCB traces nearby to ensure corrosion hasn’t spread.

Have you checked your electronic devices in humid or salty environments lately? Such conditions accelerate corrosion, so consider protective coatings or sealed enclosures. Preventive maintenance here can extend the life of your electronics significantly.

Safety Precautions

Safety is the first rule when checking electronic components. Electricity can harm you or damage parts. Always prepare well before starting any test or repair. Simple safety steps protect you and your tools.

Follow these safety guidelines to avoid risks. Use the right tools and work in a safe space. Never rush or guess during your checks. Careful handling keeps everything safe and working.

Wear Protective Gear

Use safety glasses to protect your eyes from sparks or debris. Wear gloves to avoid electric shocks and burns. Avoid loose clothing or jewelry that can catch on parts.

Turn Off Power Supply

Always disconnect the power before opening any device. Use a tester to check if the circuit is dead. Never touch components while power is on.

Work In A Clean, Dry Area

Keep your workspace dry to prevent electric shock. Avoid clutter to stop accidents and lost parts. Use a non-conductive mat for better safety.

Use Proper Tools

• Choose insulated screwdrivers and pliers.
• Use a multimeter with proper voltage ratings.
• Handle delicate parts with tweezers or small tools.

Follow Manufacturer Instructions

Read manuals and datasheets before testing parts. Follow recommended procedures and limits strictly. Avoid improvising to keep components safe.

Credit: www.youtube.com

Frequently Asked Questions

How Can I Test Electronic Components At Home?

You can test components using a multimeter for resistance, voltage, and continuity. Simple tools like a battery and LED help check diodes and LEDs. Always ensure the device is powered off before testing to avoid damage or injury.

What Tools Are Needed To Check Electronic Components?

Essential tools include a digital multimeter, oscilloscope, and component tester. A soldering iron and magnifying glass are useful for detailed inspections. These tools help measure electrical properties and identify faulty components accurately.

How To Identify Faulty Electronic Components Quickly?

Look for physical damage like burns or cracks first. Use a multimeter to check for open or short circuits. Comparing component readings to datasheet specifications helps confirm if they are faulty.

Can I Check Components Without Removing Them From The Circuit?

Yes, some tests like voltage and continuity can be done in-circuit. However, accurate resistance and capacitance tests often require component removal. Ensure power is off to prevent inaccurate readings or damage.

Conclusion

Checking electronic components is simple with the right steps. Use basic tools like a multimeter to test parts. Always follow safety rules to avoid accidents. Practice makes you better at spotting faulty components. Understanding how each part works helps in quick checks.

Keep your workspace clean and organized for easy testing. Regular checks save time and prevent bigger problems later. Stay patient and take your time to get accurate results. This approach ensures your electronic devices work well and last longer.
